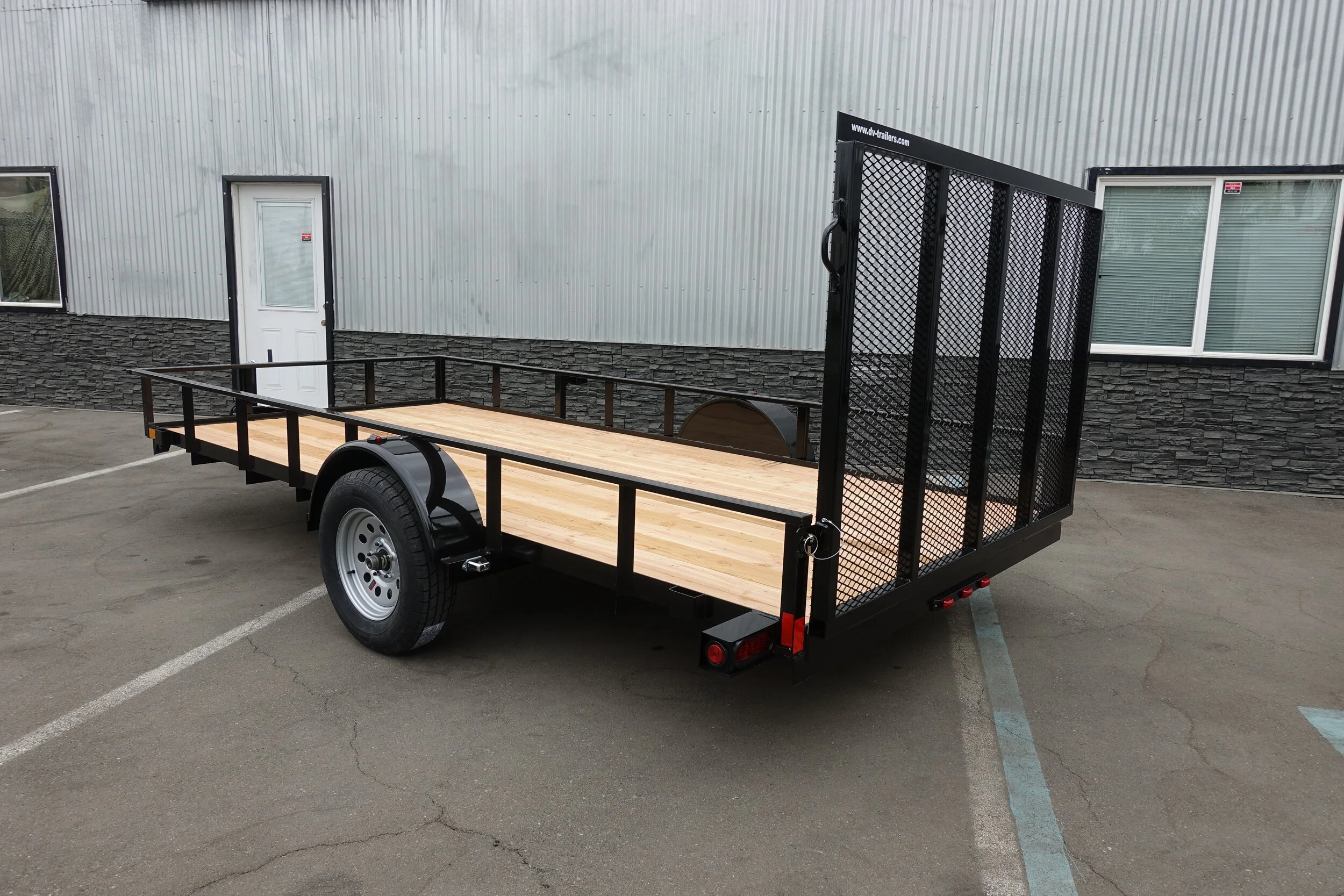

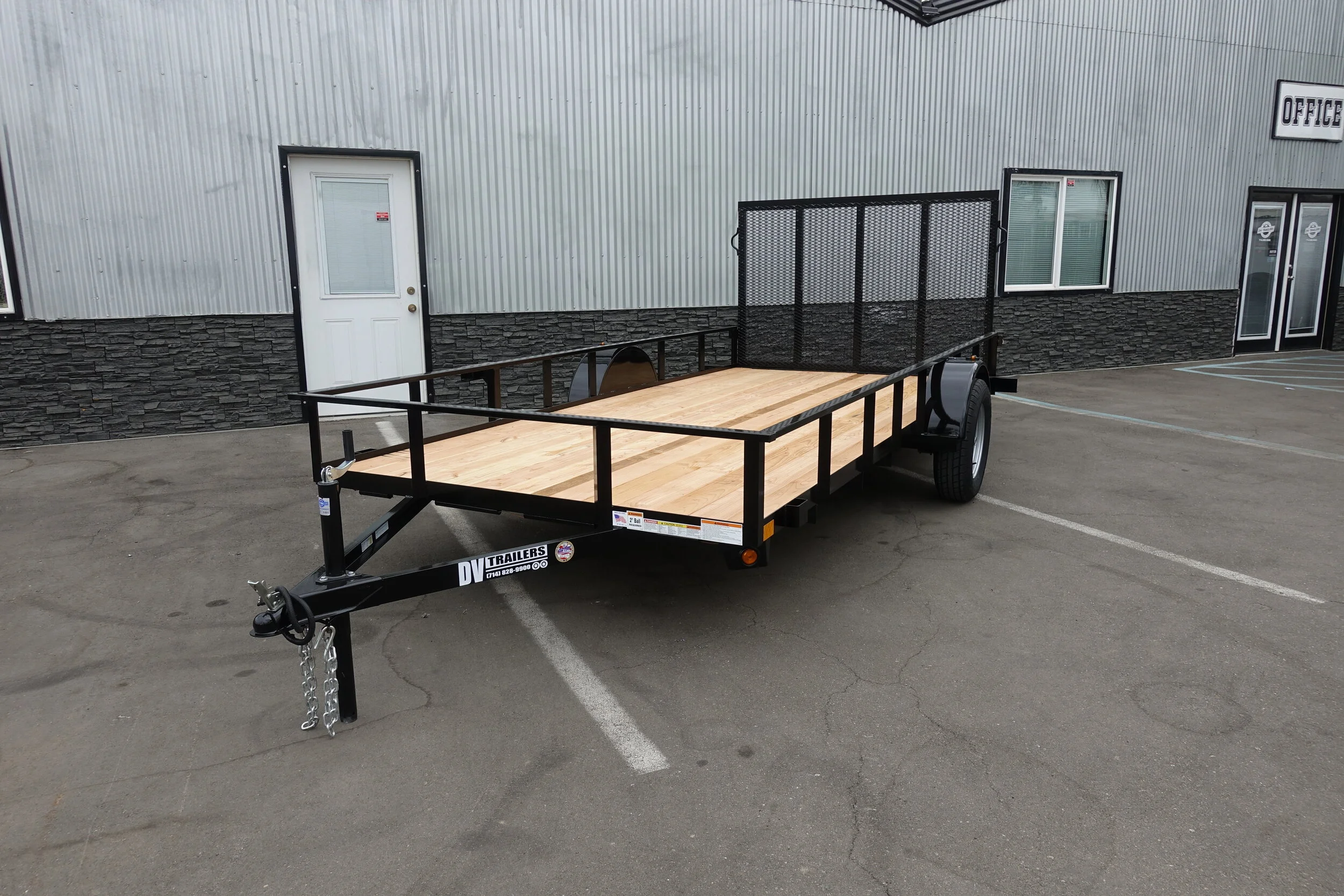

Single 3500 pound Dexter cambered axle, 15 inch tires (205/75D15) on 5on5 rims, 3 inch channel tongue, 2 inch coupler, 2000 pound tongue jack, 3x2 angle mainframe, 3x2 angle crossmembers, automotive grade enamel paint and primer, LED lights, NATM certified, 2 year warranty.
*Shown with optional 4 foot rampgate.
Available Sizes:
30SA (5’wide)
5x8, 5x10, 5x12
68SA (68” wide)
68x10, 68x12, 68x14
35SA (77” wide)
77x10, 77x12, 77x14

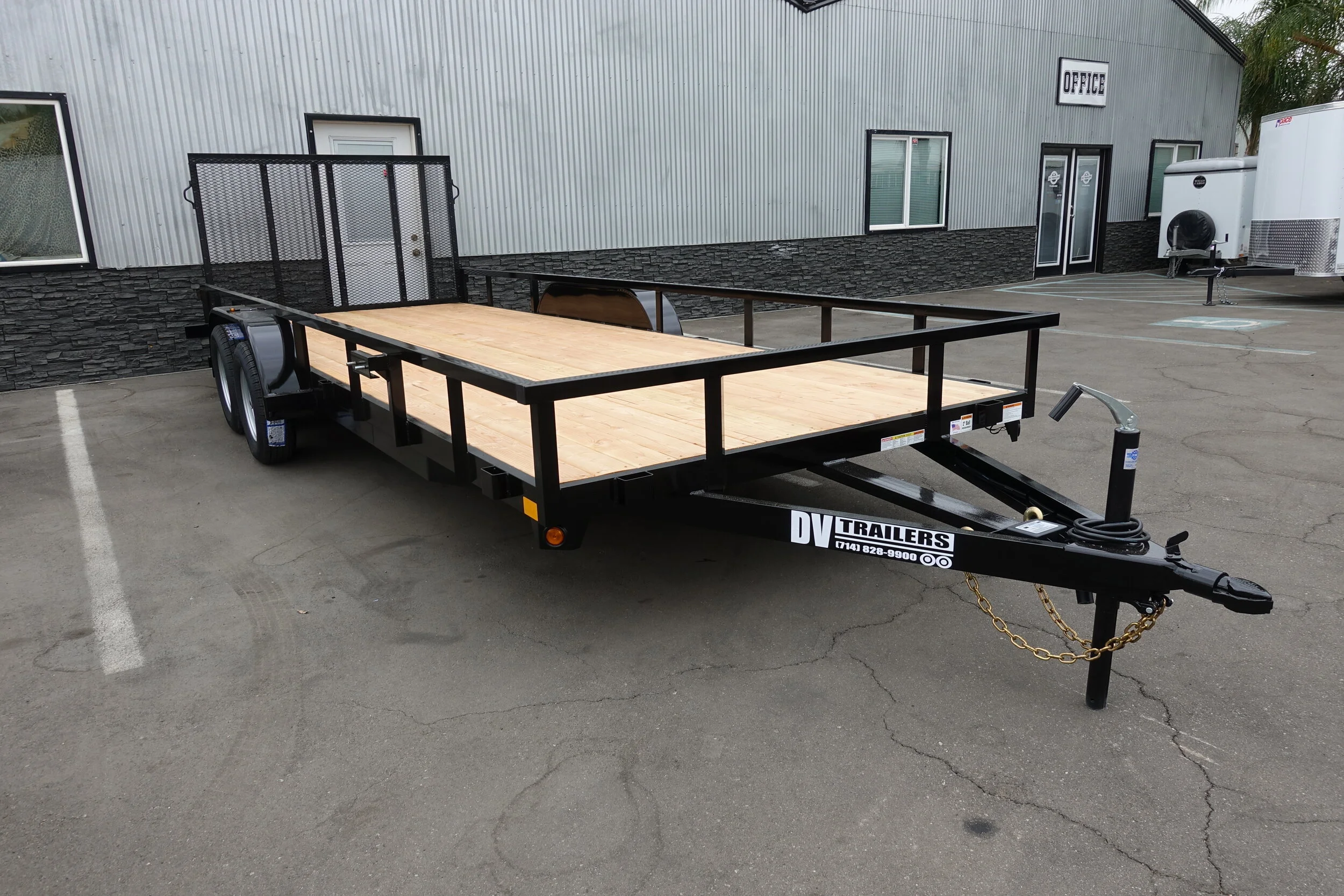

Dual 3500 pound Dexter cambered axles with electric brakes on the rear axle, 15 inch tires (205/75D15) on 5on5 rims, 4 inch channel tongue, 2 inch coupler, 2000 pound tongue jack, 3x2 angle mainframe, 3x2 angle crossmembers, automotive grade enamel paint and primer, LED lights, NATM certified, 2 year warranty.
*Shown with optional ramp gate
Available Sizes:
77x10, 77x12, 77x14, 77x16
Single 3500 pound Dexter cambered axle, 15 inch tires (205/75D15) on 5on5 rims, 3 inch channel tongue, 2 inch coupler, 2000 pound tongue jack, 3x2 angle mainframe, 3x2 angle crossmembers, 24 inch tall sides, 4’ expanded metal rampgate, automotive grade enamel paint and primer, LED lights, NATM certified, 2 year warranty.
Available Sizes:
30SV (5’wide)
5x8, 5x10, 5x12
68SV (68” wide)
68x10, 68x12, 68x14
35SV (77” wide)
77x10, 77x12, 77x14

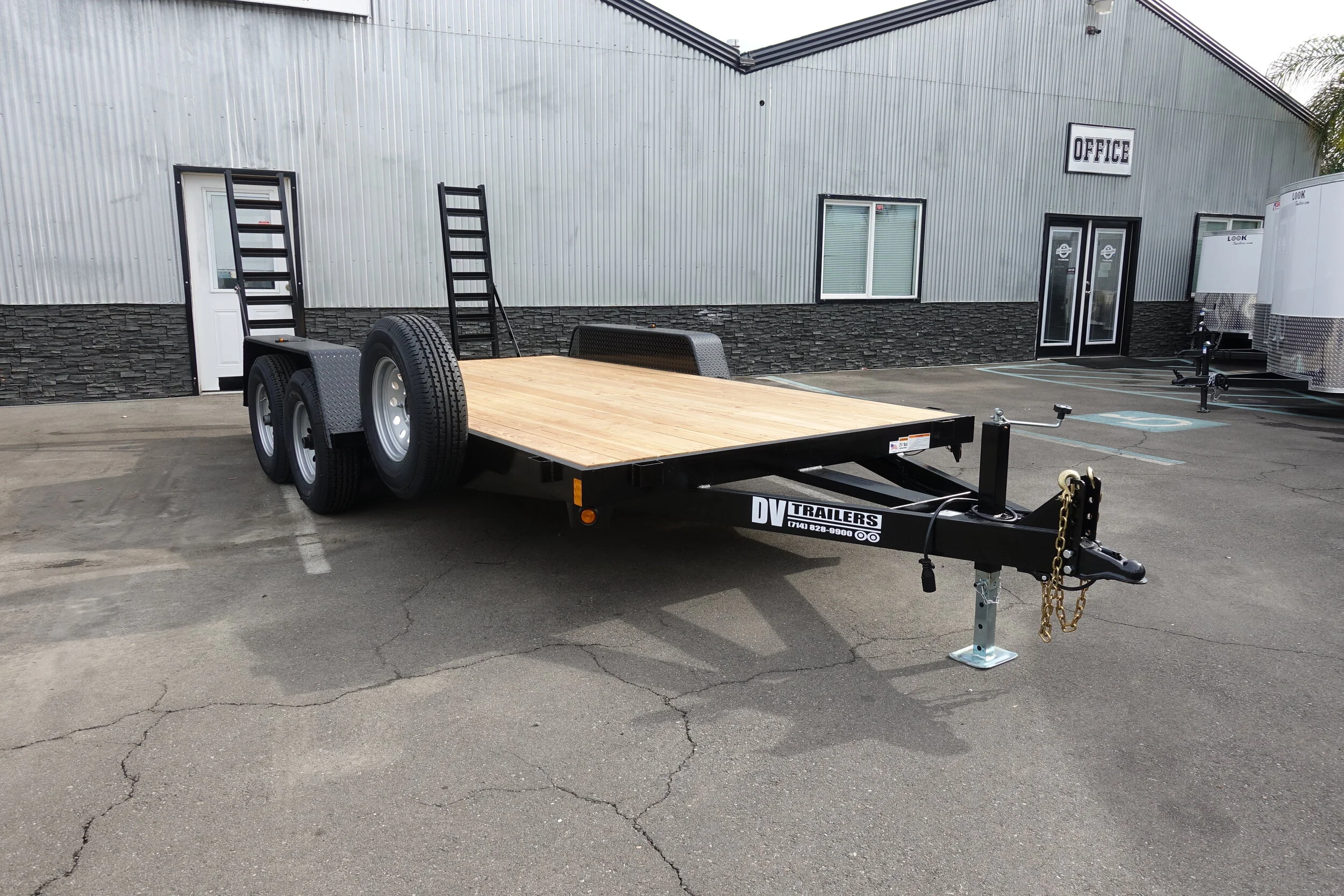

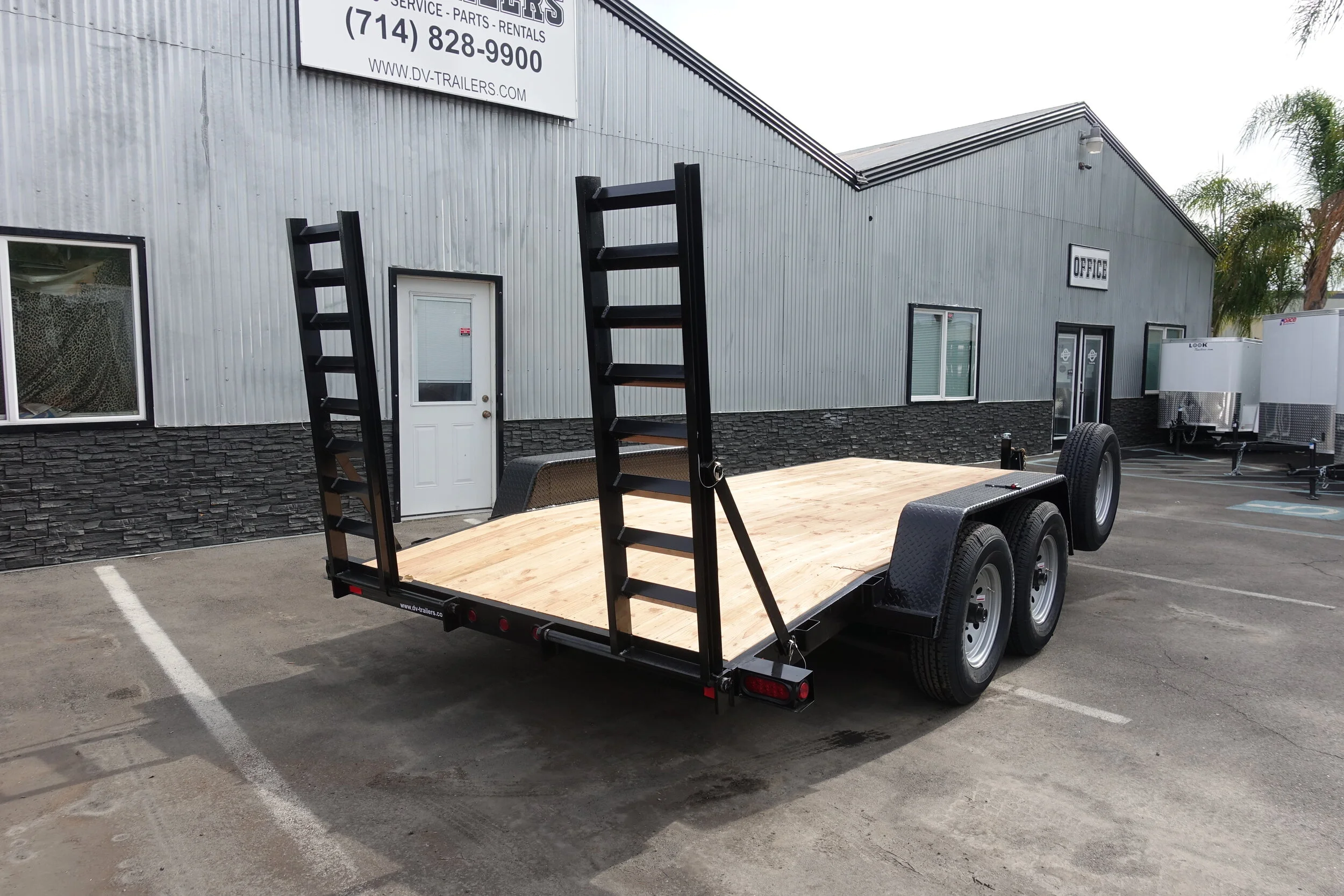

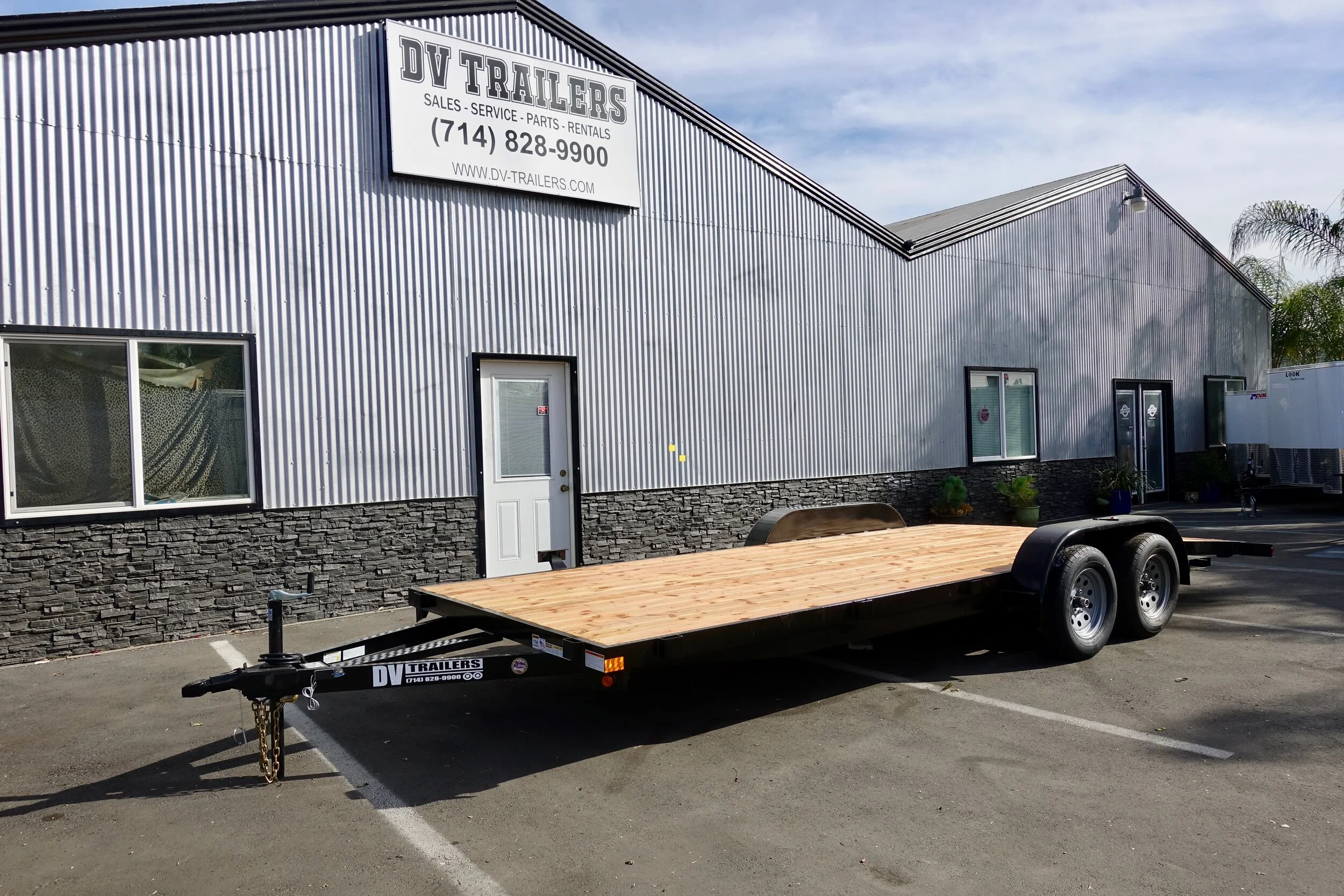

Dual 3500 pound Dexter cambered axles with electric brakes on the rear axle, 15 inch tires (205/75D15) on 5on5 rims, 4 inch channel wrap around tongue with 2 inch coupler, 2000 pound rated tongue jack, 4 inch channel mainframe, 2 inch square tube crossmembers, 83 inch wheel well clearance, dovetail, and 4 foot slide in ramps (in pockets), LED Lights, 2 year warranty, NATM certified
Available Sizes:
83x16, 83x20
Dual 3500 pound Dexter cambered axles with electric brakes on the rear axle, 15 inch tires (205/75D15) on 5on5 rims, 4 inch channel wrap around tongue with 2 inch coupler, 2000 pound rated tongue jack, 4 inch channel mainframe, 2 inch square tube crossmembers, 2 inch square tube top rail, 83 inch wheel well clearance, 4 foot slide in ramps in pockets) or 4 foot expanded metal rampgate, LED Lights, 2 year warranty, NATM certified.
Available Sizes
83x16, 83x20
Dual 3500 pound Dexter cambered axles with electric brakes on the rear axle, 15 inch tires (205/75D15) on 5on5 rims, 4 inch channel wrap around tongue with 2 inch coupler, 2000 pound rated tongue jack, 4 inch channel mainframe, 2 inch square tube crossmembers, 2 inch square tube top rail, 24 inch tall solid steel sides, 83 inch wheel well clearance, 4 foot expanded metal rampgate, LED Lights, 2 year warranty, NATM certified.
Available Sizes
83x10, 83x12, 83x14, 83x16
Dual 5200 pound Dexter cambered axles (6000 pound rated beams) with electric brakes on both axles, 5 inch channel wrap around tongue, 5 inch channel mainframe, 3 inch channel crossmembers, 8000 pound drop leg tongue jack, adjustable channel coupler (2 5/16”) or lunette eye (pintle), dovetail, 83” wheel well clearance, 5 foot pin up ramps (3 inch channel), LED lights, NATM certified.
Available Sizes:
83x16, 83x20
Dual 5200 pound Dexter cambered axles (6000 pound rated beams) with electric brakes on both axles, 5 inch channel wrap around tongue, 5 inch channel mainframe, 3 inch channel crossmembers, 2x3 tube top rail, 8000 pound drop leg tongue jack, adjustable channel coupler (2 5/16”) or lunette eye (pintle), dovetail, 83” wheel well clearance, 5 foot pin up ramps (3 inch channel), LED lights, NATM certified.
Available Sizes:
83x16, 83x20
Dual 3500 pound Dexter cambered axles with electric brakes on the rear axle, 5 inch channel tongue, 5 inch channel mainframe, 3 inch channel crossmembers, 18 inch tall sides, 5x10 bed, single cylinder ram, 2000 pound tongue jack, LED lights, 2 year warranty, NATM certified.
Available Sizes:
5x10
Dual 5200lb axles with electric brakes on both axles, 6" inch channel mainframe, 6 inch channel tongue with adjustable coupler ( 2 5/16”) or lunette eye (pintle), Dalton single cylinder ram, electric over hydraulic pump (power up-power down), (4) D-Rings welded in bed, stake pockets and rub rail, 8000 pound rated tongue jack, diamond plate fenders, 235/80R16 tires, spare tire mount, LED Lights, 2 year warranty, NATM certified
*Shown with optional spare tire
Available Sizes:
83x12
Dual 5200lb axles (6000 pound rated beam) with electric brakes on both axles, 6" inch channel mainframe, 6 inch channel tongue with adjustable coupler ( 2 5/16”) or lunette eye (pintle), Champion scissor hoist, electric over hydraulic pump (power up-power down), (4) D-Rings welded in bed, stake pockets and rub rail, 8000 pound rated tongue jack, diamond plate fenders, 235/80R16 tires, spare tire mount, LED Lights, 2 year warranty, NATM certified.
Available Sizes:
83x12 (24” Tall sides)
83x12 (48” Tall Sides)
Dual 7000 pound rated Dexter cambered axles with electric brakes on both axles, 6" inch channel mainframe, 6 inch channel tongue with adjustable coupler ( 2 5/16”) or lunette eye (pintle), Champion 615 T scissor hoist, electric over hydraulic pump (power up-power down), (4) D-Rings welded in bed, stake pockets and rub rail, 8000 pound rated tongue jack, diamond plate fenders, 235/85R16 tires, spare tire mount, LED Lights, 2 year warranty, NATM certified.
Available Sizes:
83x12 (2’ Tall)
83x12 (4’ Tall)
83x14 (2’ Tall)
83x14 (4’ Tall)
83x16 (2’ Tall)
Dual 5200lb axles (6000 pound rated beams) with electric brakes on both axles, 12” I-Beam constriction, stake pockets and rub-rail, 102” wide deck, 8000 pound rated tongue jack, 235/80R16 tires, LED tail lights, 2 year warranty, NATM certified.
Available Sizes:
102”x16, 102”x20

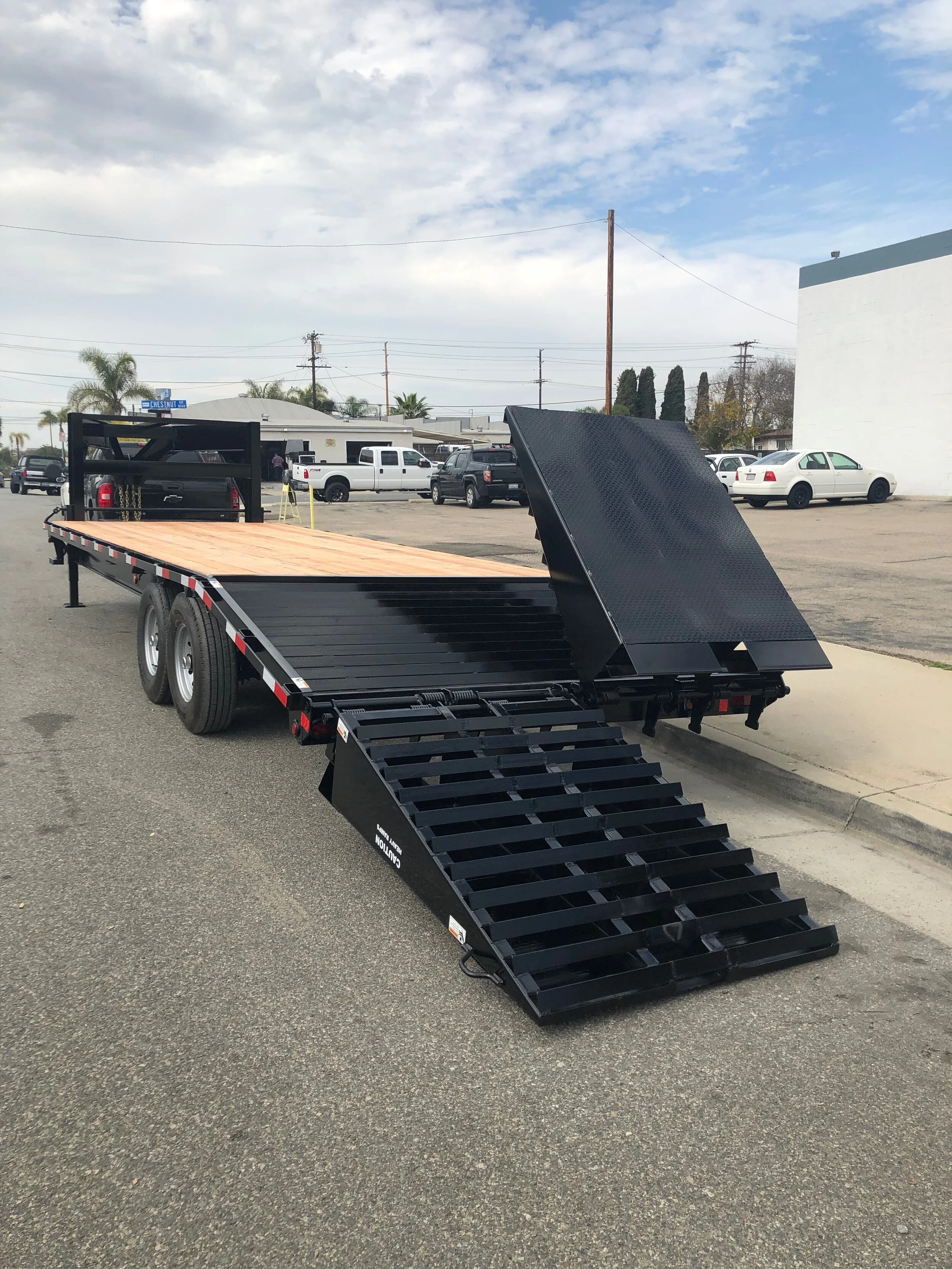

Dual 5200 pound Dexter cambered axles, electric brakes, 80 inch between fender width, knife-edge on rear, step up tongue with adjustable channel for 2 5/16 inch or lunette eye (pintle), 235 80 R16 Tires, 2 year warranty, LED lights, NATM certified.
Available Sizes
80x16, 80x20
